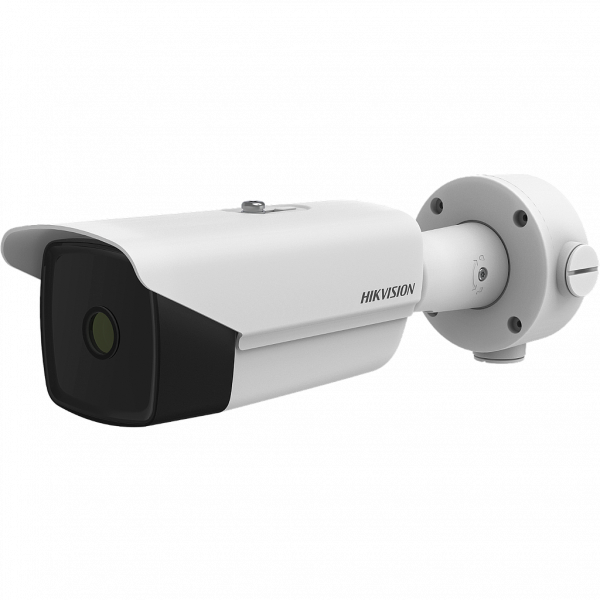

    DS-2TD2137T-7/P

DS-2TD2137T-7/P

2 119,00 €
TTC
livraison sous 48H

Caméra Thermique Thermographique - Focale Fixe 6,5mm - Résolution 384 × 288 - Fonction analyse embarquée - Détection de feu à +/- 2°C

Quantité
Add to wishlist
Derniers articles en stock

  Garanties sécurité

Garanties sécurité vers SSL.

  Politique de livraison

Retrait en boutique à Paris

Guarantee safe & secure checkout

  • Thermal Module
  • Image SensorVanadium Oxide Uncooled Focal Plane Arrays
  • Resolution384 × 288
  • Pixel Interval17 μm
  • Response Waveband8 μm to 14 μm
  • NETD≤ 35 mk (25 °C, F# = 1.0)
  • Focal Length6.5 mm
  • IFOV2.62 mrad
  • Field of View60° × 44.1° (H × V)
  • Min. Focusing Distance0.6 m
  • ApertureF 1.0
  • Digital Zoom×2, ×4, ×8
  • Image Effect
  • Target ColorationYes. Supported in white hot and black hot mode.
  • Smart Function
  • VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
  • Temperature Measurement3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line).
  • Temperature Range- 20 °C to 550 °C (- 4 °F to 1022 °F)
  • Temperature AccuracyMax (± 2 °C, ±2 %)
  • Fire DetectionDynamic fire detection, up to 10 fire points detectable.
  • Video and Audio
  • Main Stream50 Hz: 25 fps (1280 × 720, 704 × 576, 352 × 288, 384 × 288)
  • Sub-stream50 Hz: 25 fps (704 × 576, 352 × 288, 384 × 288)
  • Third Stream50 Hz: 25 fps (1280 × 720, 704 × 576, 352 × 288, 384 × 288)
  • Video Compression

    Main Stream: H.265/H.264

    Sub-Stream: H.265/H.264/MJPEG

    Third Stream: H.265/H.264/MJPEG

  • Audio CompressionG.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/AAC/PCM
  • Network
  • ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
  • APIISAPI, HIKVISION SDK, third-party management platform, ONVIF (Profile S, Profile G, Profile T)
  • SecurityUser authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x (EAP-MD5, EAP-TLS), access control, IP address filtering
  • Simultaneous Live ViewUp to 20 channels
  • ClientiVMS-4200, Hik-Connect
  • Web Browser

    Live view (plug-in allowed) : Internet Explorer 11

    Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +

    Local service : Chrome 57.0+, Firefox 52.0 +

  • Network StorageMicroSD/SDHC/SDXC card (up to 256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
  • User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
  • Interface
  • Alarm Input2-ch inputs (0-5 VDC)
  • Alarm Output2-ch relay outputs, alarm response actions configurable
  • Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage
  • Audio Input

    1, 3.5 mm Mic in/Line in interface

    Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%

  • Audio OutputLinear level, impedance: 600 Ω
  • Communication Interface

    1, RJ45 10 M/100 M self-adaptive Ethernet interface

    1, RS-485 interface

  • General
  • Web Client Language

    32 languages

    English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

  • Power

    24 VAC ± 25%, 12 VDC ± 25%, 24VDC, two-core terminal block

    PoE (802.3af, class 3)

  • Power Consumption

    18 VAC to 30 VAC: 0.13 A to 0.22 A, max 5 W

    9 VDC to 15 VDC: 0.37 A to 0.61 A, max 5 W

    24VDC: 0.21A, max 5 W

    PoE (802.3af, class 3): 44 V to 57 V: 0.1 A to 0.13 A, max. 5.5 W

  • Working Temperature/Humidity

    Temperature: - 40 °C to 65 °C (- 40 °F to 149 °F)

    Humidity: 90% or less

  • Protection Level

    IP67 Standard

    TVS 6000V lightning protection, surge protection, voltage transient protection

  • Dimensions351.3 mm × 113.5 mm × 115.2 mm (13.83" × 4.47" × 4.53")
  • WeightApprox. 1.77 kg (3.90 lb)
  • Detection Range Table/Smart Function Range
  • VCA Range for Humans49 m
  • VCA Range for Vehicles147 m
HIKVISION
DS-2TD2137T-7/P
